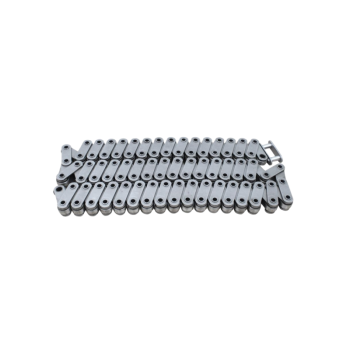

Conveyor Chain ZC60 Hollow Pin Conveyor Chains | ZC Series
- FOB Price
US $0.51 - 10000 piece
- group name
- Single Strand Conveyor Chains
- Min Order
- 1 piece
- brand name
- CTS-ChinaTransmissionS
- model
- ZC60 Conveyor chains (ZC series)
- Nearest port for product export
- Shanghai, Ningbo, Tianjing, Guangzhou
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash
- update time
- Wed, 12 Mar 2025 14:52:22 GMT
Paramtents
Meterial 40Mn
Color natural/bule/yellow
Accuracy High precision conveyor chain
Quality Durable conveyor chain
Interchangeability Directly interchangeable with other brands
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
About ZC Series Conveyor Chains
CTS® ZC Series Conveyor Chain
The ZC Series Hollow Pin Conveyor Chain is a specialized chain commonly used in conveyor systems that require versatility and easy customization. Its hollow pin design allows for the attachment of cross rods, fixtures, or other attachments, making it ideal for diverse applications like food processing, packaging, and material handling. ZC series hollow pin conveyor chain is often available in carbon steel or stainless steel materials, providing durability and resistance to wear or corrosion.
For quotation or other information on ZC Series Conveyor Chains, please contact us and we will be happy to help you.
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.
✔ Optimized for long-distance, low-speed transport
✔ High wear resistance
✔ High fatigue strength
ZC60 Conveyor Chain Dimension
ZC60 Hollow Pin Chain Dimensions
- Pitch p: 88.9 mm
- Width between inner plates b1 min: 19 mm
- Pin diameter d2 max: 19 mm
- Bush diameter d3 max: 23 mm
- Pin length b4 max: 46 mm
- Hollow Pin inner diameter d6 min: 13.2 mm
- Roller diameter large roller d4 max: 47.5 mm
- Flanged roller diameter d7: 60 mm
- Plate thickness Ti/To: 5/4 mm
- Height inner plate h2 max: 40 mm
- Min.tensile strength: 60 kN
