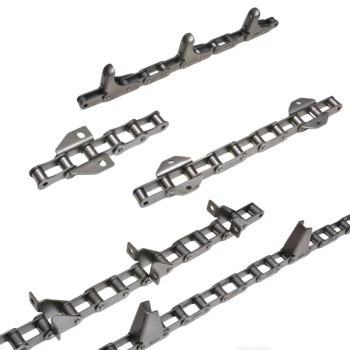

C210AF1 C212AF1 Agriculture Combine Chains Corn Harvester Conveyor Chain

group name: Double Pitch Conveyor Chains

Min Order: 1 piece

brand name: CTS-ChinaTransmissionS

model: C210AF1 C212AF1

Nearest port for product export: Shanghai, Ningbo, Tianjing, Guangzhou

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash

update time: Sat, 29 Aug 2026 07:45:15 GMT

contact supplier

Paramtents

Model C210AF1/C212AF1
Delivery time 30-60 days

Packging & Delivery

Min Order1 piece

Briefing

C210AF1 and C212AF1 agricultural combine chains for combine harvesters, corn harvesting equipment, and agricultural conveyor systems.

Detailed

About C210A C212A Combine Chain

C210AF1 and C212AF1 are agricultural combine chains designed for conveying, feeding, and power-transmission systems in combine harvesters and other heavy-duty crop-harvesting machinery.

Combined chains are developed to meet the specific requirements of agricultural harvesting equipment, where the chain may be exposed to crop residue, dust, vibration, impact loads, and continuously changing operating conditions.

With appropriate sprocket matching, lubrication, tensioning, and maintenance, these chains can be used in demanding agricultural conveying and feeding mechanisms.

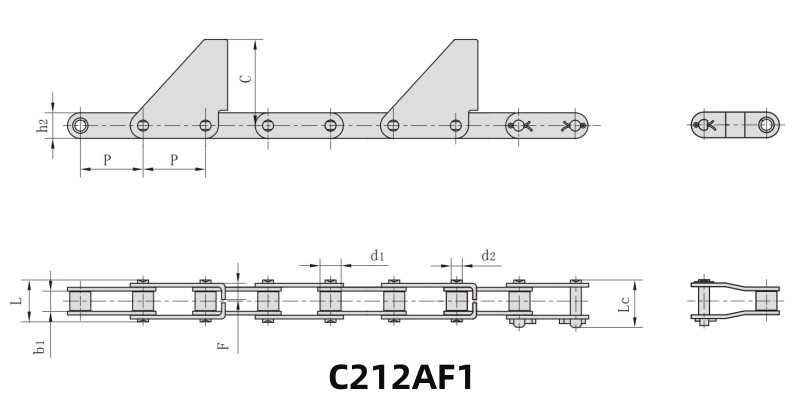

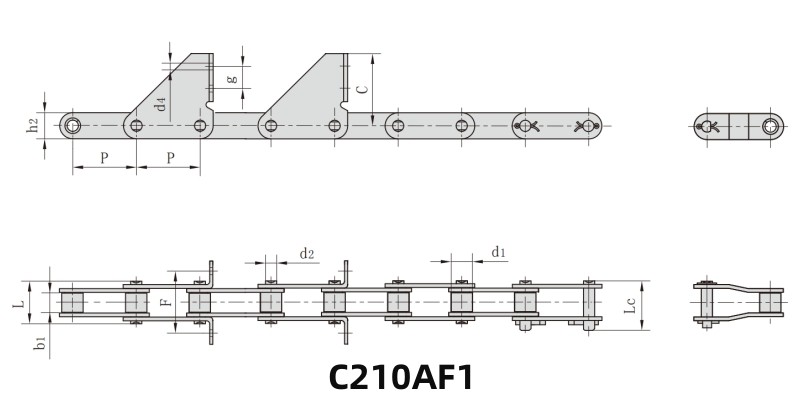

C210AF1 C212AF1 Combine Chains Dimension

CHIAN SIZE	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Attachment dimension				Tensile strength
	P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	F	C	d4	g	Q min
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf
C210AF1	31.75	10.16	9.40	5.08	20.7	23.3	15.0	35.20	54.0	7.0	23.0	21.8/4955
C212AF1	38.10	11.91	12.57	5.94	25.9	28.3	18.0	10.92	56.0	-	-	31./7068

Combine Chains Application

Agricultural Chain with Attachment for Machinery

C210AF1 and C212AF1 combine chains are primarily used in agricultural harvesting and conveying equipment, including combine harvesters, corn harvesters, grain harvesting machinery, and crop feeder or conveyor systems.

They are used in chain-driven mechanisms that move harvested crops through different stages of the machine, where the chain may be exposed to dust, soil, crop residue, vibration, and intermittent impact loads.

Looking for more agricultural chain options? Explore our Agricultural Chains range to find combine chains, conveyor chains, and other chain solutions developed for agricultural machinery and crop-handling applications.
