ANSI #40 Roller Chain
- group name
- Single Strand Roller Chains
- Min Order
- 1 piece
- brand name
- CTS-ChinaTransmissionS
- model
- ANSI 40 Roller Chain
- Nearest port for product export
- Shanghai, Ningbo, Tianjing, Guangzhou
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 16:54:09 GMT
Paramtents
Material Carbon Steel
Color Natural
Surface Treatment Shot Peening/Heat Treatment/Plating/Lubrication
Accuracy High precision roller chain
Quality Durable roller chain
Interchangeability Directly interchangeable with other brands
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
About ANSI #40 Roller Chains

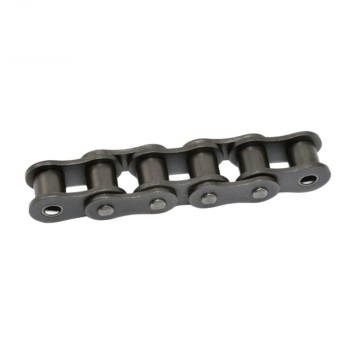

CTS® #40 Roller Chain
Our #40 roller chains adhere to ANSI B29.1 Standards, ensuring complete interchangeability with other ANSI-certified roller chains and proper operation on #40 chain sprockets. Crafted with precision, our roller chains feature high-quality heat-treated, shot-peened, and hardened components, complemented by a factory-applied premium lubricant for optimal performance.
CTS® high-quality ANSI #40 simplex roller chains built to keep your machine running!
For quotation or other information on ANSI single-strand roller chains, please contact us and we will be happy to help you.
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.
ANSI #40 Roller Chain Dimension
RS40 Roller Chain Dimensions
- Pitch(P): 12.7000 mm
- Roller diameter(d1): 7.95 mm
- Width between inner plates(b1): 7.85 mm
- Pin diameter(d2): 3.96 mm
- Pin length(L): 16.60 mm
- Pin length(Lc): 17.80 mm
- Inner plate depth(h2): 12.00 mm
- Plate thickness(T): 1.50 mm
- Tensile strength: 14.10/3205 kN/lbf
- Weight per meter: 0.62 kg/m
