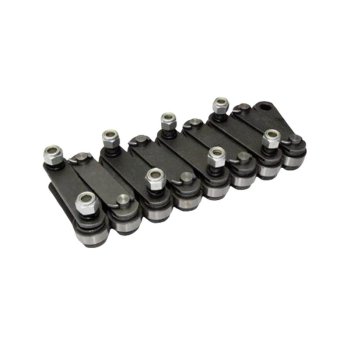

Palm Oil Chains

group name: Customized Chains

Min Order: 1 piece

brand name: CTS-ChinaTransmissionS

model: Palm Oil Chains

Nearest port for product export: Shanghai, Ningbo, Tianjing, Guangzhou

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash

update time: Tue, 26 Nov 2024 19:45:22 GMT

contact supplier

Paramtents

Material Carbon Steel
Color Natural
Surface Treatment Shot Peening/Heat Treatment/Plating/Lubrication
Accuracy High precision industrial chain
Quality Durable industrial chain
Interchangeability Directly interchangeable with other brands

Packging & Delivery

Min Order1 piece

Briefing

Palm Oil Roller Chains are robust, corrosion-resistant chains used in palm oil mills for conveying heavy loads efficiently.

Detailed

About Palm Oil Mill Chains

Are you in need of transmission chains for your palm oil production process? Look no further! CTS® palm oil mill chains are specifically designed to ensure safe and efficient material conveyance throughout your production line.

Crafted with superior tensile strength and abrasion resistance, our palm oil mill chains guarantee reliable performance, allowing for seamless production operations. Our meticulous manufacturing process includes detailed material selection, precision machining, specialized heat treatment, precise assembly, and pre-lubrication, resulting in chains that boast exceptional precision, durability, and abrasion resistance.

Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features
Precision Machined Components
Low Friction
Directly interchangeable with other brands
Uniform Heat Treatment

Palm Oil Mill Chain Technical Data

CTS® Chain No.	Pitch	Roller diameter	Width between inner plates	Plate depth	Pin diameter	Pin length		Plate thickness	Tensile strength	Average tensile strength	Weight per meter
	P	d1 max	b1 min	h2 max	d2 max	L max	Lc max	t/T max	Q min	Q0	q
	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN	kg/m
P101.6F2	101.60	47.60	18.20	38.10	19.10	48.00	65.0	5.0	97.8/22000	107.58	6.75
P0101.6F12	101.60	47.50	19.00	40.00	19.10	45.80	52.5	5.0/4.0	130.0/29224	143.00	6.84
P0101.6F15	101.60	66.70	26.00	50.00	26.90	65.80	87.0	7.1	200.0/45454	200.00	15.10
P152F5	152.40	66.70	25.40	50.00	26.90	61.20	80.0	7.1	134.0/30123	147.40	12.16
P152F14	152.40	47.60	18.20	38.10	19.10	48.00	52.0/50.5	5.0	89.0/20000	97.90	5.66
P152F17	152.40	66.70	25.40	50.80	27.00	67.50	95.0	8.0	163.3/36710	179.60	12.83
P152F29	152.40	66.70	25.40	50.80	27.00	69.50	111.5	9.0/8.0	200.0/45454	220.00	13.54
P0152F1	152.40	88.90	38.10	70.00	32.00	93.80	101.5	12.0/9.5	444.53/99930	488.98	30.28
P0152F3	152.40	66.70	25.40	50.80	27.00	-	110.0	8.0	163.3/36710	180.00	13.50
P0152F4	152.40	69.85	38.10	57.15	21.84	101.00	110.0	12.7	440.0/98912	484.00	22.77
P0152F7	152.40	88.90	38.00	61.00	31.80	83.50	92.0	10.0/8.0	380.0/85242	418.00	23.50
P0152F17	152.40	66.70	25.40	50.80	27.00	67.50	78.0	8.0	163.3/36710	179.63	12.83
P0152F22	152.40	66.70	26.00	50.00	27.00	59.30	69.8	7.0/5.0	200.0/45454	220.00	10.90
P0152F23	152.40	66.70	26.00	50.00	26.90	61.80	69.1	7.1/5.1	200.0/45454	220.00	10.90
P0152F24	152.40	88.90	38.00	60.00	32.00	85.40	96.0	10.0/8.0	380.0/85242	418.00	23.00
P0152F25	152.40	88.90	38.00	60.00	32.00	89.40	120.3	10.0	380.0/85242	418.00	24.20
P0152F26	152.40	66.70	26.00	50.00	26.90	65.80	87.0	7.1	200.0/45454	220.00	11.90
P0152F27	152.40	66.70	25.40	50.80	27.00	71.50	99.0	9.0	267.0/60022	293.70	14.00

But our expertise doesn't stop there. In addition to palm oil mill chains, we offer a diverse range of transmission chains tailored to various industries. From lumber conveyor chains to chains for the cement and coal milling industries, our products are renowned for their stability and high quality, meeting rigorous international standards such as ISO, ANSI, DIN, BS, and JIS.

If you're in need of top-notch transmission chains or any other transmission chains for your industrial applications, don't hesitate to get in touch with us. We're here to meet your needs and exceed your expectations.
