Flap top chains

group name: Customized Chains

Min Order: 1 piece

brand name: CTS-ChinaTransmissionS

model: Flap top chains

Nearest port for product export: Shanghai, Ningbo, Tianjing, Guangzhou

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash

update time: Wed, 25 Dec 2024 02:50:12 GMT

contact supplier

Paramtents

Material Carbon Steel
Color Natural
Surface Treatment Shot Peening/Heat Treatment/Plating/Lubrication
Accuracy High precision industrial chain
Quality Durable industrial chain
Interchangeability Directly interchangeable with other brands

Packging & Delivery

Min Order1 piece

Briefing

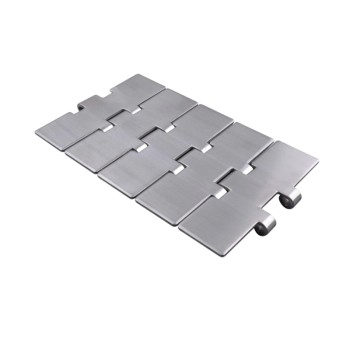

Flap top chains are conveyor chains with flat plates attached, ideal for conveying heavy loads in industrial applications.

Detailed

About Flap Top Chains

Flap top chains for conveyors represent a specialized form of stainless steel chains primarily utilized in beverage applications for the transportation of beers, drinks, food items, glassware, and more. As a leading manufacturer of flap top chains based in China, we pride ourselves on our use of high-quality stainless steel and state-of-the-art six-station automatic assembly lines. This ensures that our flap top chains meet the rigorous demands of filling machines, labeling machines, bottle conveyors, and various other equipment within the beverage industry, enabling fast and seamless conveying operations.

Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features
Precision Machined Components
Low Friction
Directly interchangeable with other brands
Uniform Heat Treatment

Flap Top Chain Technical Data

CTS® Chain No.	Pitch	Slat width	Width over fixed curl	Pin diameter	Slat thickness	Gearing curl diameter	Sideflex radius	Float-prevention tab details					Ultimate tensile strength		Weight per meter
	P	b2	b1	d2	T	d1 max	R min	H	h	L1	L2	α	300 Series Q min	400 Series Q min	q
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	°	kN	kN	kg/m
CC13SA	38.1	82.6	41.8	6.35	3.1	14.3	460						7.30	5.60	2.52
CC13SB			38.5					43		11		6.5			2.85
CC13SC			38.5					56	43		13.2				3.08
CC14SA		88.9	41.8												2.67
CC14SB			38.5					43		11		6.5			3.08
CC14SC			38.5					56	43		13.2				3.23
CC16SA		101.6	41.8												2.93
CC16SB			38.5					43		11		6.5			3.26
CC16SC			38.5					56	43		13.2				3.49
CC18SA		114.3	41.8												3.15
CC18SB			38.5					43		11		6.5			3.78
CC18SC			38.5					56	43		13.2				3.60
CC24SA		152.4	41.8				600								3.96
CC24SB			38.5					43		11		6.5			4.31
CC24SC			38.5					56	43		13.2				4.54
CC30SA		190.5	41.8												4.70
CC30SB			38.5					43		11		6.5			5.06
CC30SC			38.5					56	43		13.2				5.29

Established in 2011, CTS® Chain has emerged as a premier manufacturer of transmission industrial chains and conveyor chains. In addition to flap top chains, our diverse range includes forklift chains, industrial chains tailored for the beer and beverage industry, lumber conveyor chains, and more. Widely employed across agricultural machinery, logging equipment, wood processing machinery, road construction machinery, forklifts, household appliances, mining equipment, and beyond, our chains are engineered for durability and reliability.

Contact us today, and our dedicated team will promptly address your inquiries and provide you with the assistance you need for your specific application.
