KANA NK50-2B Sprockets

group name: JIS 50 Sprockets

Min Order: 1 piece

brand name: CTS-ChinaTransmissionS

model: 50B Sprocket

Nearest port for product export: Shanghai, Ningbo, Tianjing, Guangzhou

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash

update time: Thu, 07 Nov 2024 19:21:49 GMT

contact supplier

Paramtents

Material Carbon Steel
Color Natural
Surface Treatment Blackening/Galvanizing/Phosphating
Accuracy Precision teeth for optimum performance
Quality Superior Metric Sprocket
Interchangeability Directly interchangeable with other brands

Packging & Delivery

Min Order1 piece

Briefing

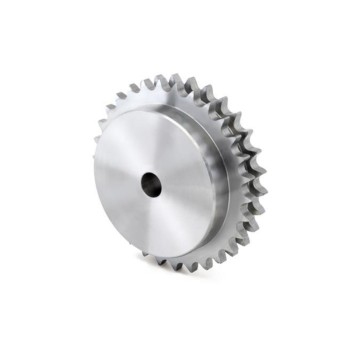

The duplex KANA NK50B sprocket is a robust, precision-engineered industrial chain sprocket.

Detailed

About KANA NK50-2B Sprocket

The KANA 50-2B sprocket is compatible with ANSI standard 50 roller chains, it ensures a precise and secure fit. Our KANA sprocket features precisely machined teeth for smooth chain engagement, minimizing friction, and enhancing operational efficiency. The KANA 50-2B duplex sprocket is ideal for heavy-duty use and offers superior performance and durability.

For a quotation or other information, please contact us and we will be happy to help you.

Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features

High-precision Sprocket
Durable Sprocket
Directly interchangeable with other brands
OEM Sprocket

KANA 50B-2 Sprocket Dimension

CHAIN	Pitch	15.875 mm
	Internal width	9.53 mm
	Roller φ	10.16 mm
SPROCKET	Tooth width (T)	8.4 mm

B Type Solid KANA NK50-2B Sprocket Dimension Chart

B Type Weld KANA NK50-2B Sprocket Dimension Chart

Type	Teeth	Do	Dp	Bore d			BD	BL	Wt kg	Material
Type	Teeth	Do	Dp	Stock	Min	Max	BD	BL	Wt kg	Material
NK50-2B	10	58	51.37	14	16	20	35	40	0.50	C45 Solid Hardened teeth
	11	64	56.35	14	16	22	40	40	0.50
	12	69	61.34	14	16	25	42	40	0.62
	13	74	66.34	14	16	30	49	40	0.75
	14	79	71.34	14	16	32	54	40	0.90
	15	84	76.35	14	16	38	59	40	1.10
	16	89	81.37	14	16	42	64	45	1.40
	17	94	86.39	14	16	45	68	45	1.60
	18	100	91.42	14	16	48	74	45	1.80
	19	105	96.45	14	16	55	79	45	2.10
	20	110	101.48	18	20	57	84	45	2.30
	21	115	106.51	18	20	60	89	45	2.60
	22	120	111.55	18	20	63	94	50	3.00
	23	125	116.58	18	20	66	99	50	3.50
	24	130	121.62	18	20	70	105	50	3.80
	25	135	126.66	18	20	70	105	50	4.20
	26	140	131.70	18	20	70	105	50	4.50	C45 Solid
	27	145	136.74	18	20	70	105	50	4.80
	28	150	141.79	18	20	75	110	50	5.10
	29	155	146.83	18	20	75	110	50	5.50
	30	161	151.87	18	20	80	120	50	5.80
	31	166	156.92	23	25	80	120	50	5.90	Fe360 Welding
	32	171	161.96	23	25	80	120	50	6.00
	33	176	167.01	23	25	80	120	50	6.50
	34	181	172.05	23	25	80	120	50	6.80
	35	186	177.10	23	25	80	117	50	7.00
	36	191	182.14	23	25	80	117	50	7.00
	38	201	192.24	23	25	80	117	50	8.00
	40	211	202.33	23	25	80	117	56	9.00
	42	221	212.43	23	25	66	98	56	8.88
	45	237	227.58	23	25	66	98	56	9.96
	48	252	242.73	23	25	66	98	56	8.00
	50	262	252.83	23	25	66	98	56	9.00
	54	282	273.02	23	25	66	98	56	9.90
	60	312	303.33	23	25	66	98	56	11.70
	65	338	328.58	23	25	66	98	56	13.00
	70	363	353.84	23	25	66	98	56	15.00
