ANSI #25-#60 | Metric 05B-12B Roller Chain Breaker

ANSI #25-#60 | Metric 05B-12B Roller Chain Breaker
group name
Roller Chain Breaker
Min Order
1 piece
brand name
CTS-ChinaTransmissionS
model
#25-#60 Chain Breaker Detacher
Nearest port for product export
Shanghai, Ningbo, Tianjing, Guangzhou
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash
update time
Sun, 24 Nov 2024 00:08:43 GMT

Paramtents

  • Material Steel

  • Color Natural

  • Accuracy Extreme Performance & Durability

  • Quality Easy Installation and Maintenance

  • Interchangeability Directly interchangeable with other brands

Packging & Delivery

  • Min Order1 piece

Briefing

Our roller chain breaker provides precise, safe chain disassembly for #25 to #160 roller chains and 05B to 32B roller chains.

Detailed

Roller Chain Breaker

Our roller chain breaker is a precision-engineered tool designed for efficient and safe disassembly of roller chains ranging from #25 to #160 (05B to 32B).


For a quotation or other information on roller chain breakers, please contact us and we will be happy to help you.


High Quality

High-Grade Steel

Extreme Performance & Durability


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

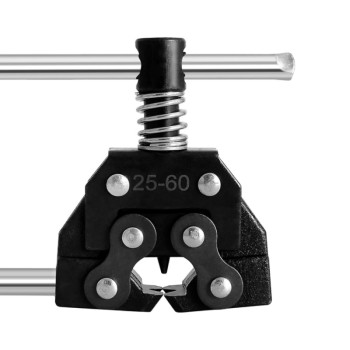

#25-#60 Roller Chain Breaker

Our #25-#60 Chain Breaker is made from tool-grade steel to ensure it can easily handle numerous cuts. The 25-60 roller chain puller is a universal tool designed to work with various sizes of ANSI, Metric, and Conveyor roller chains, ranging from #25 to #60. Our chain breaker comes with an extra easy-to-install replacement tip, nearly doubling the device's usable lifespan. Whether you break roller chains regularly or multiple times a day, our robust roller chain puller meets your demands.

#25-#60 roller chain breaker can cut roller chains from 1/4" to 3/4" chain pitch, so it can not only break ANSI #25, #35, #40, #41, #50, #60 roller chains, but also breaker Metric 05B, 06B, 08B, 10B, and 12B roller chain.
Compatiable Chain Size with #25-#60 Chain Breaker
ANSI Roller Chain
#25, #35, #40, #41, #50, #60 Roller Chain
Metric Roller Chain
05B, 06B, 08B, 10B, 12B Roller Chain
Conveyor Chain
C2040, C2050 Conveyor Chain

How to use Roller Chain Breaker

Safety Note:

Wear Protective Gear: Ensure you are wearing safety glasses and gloves before using the chain breaker.
Release Chain Tension: Ensure no tension on the roller chain; this may require a roller chain puller.
Shut-Off Equipment: Make sure all equipment that the chain is on is shut off before proceeding with the chain-breaking process.
Roller Chain Breaker
Step 1
Clip the chain breaker onto the roller of the roller chain

It must be ensured that the tips of the roller chain breaker and the pins of the roller chain are precisely aligned. Otherwise, you may break the chain breaker tip or fail to break the roller chain.
Step 2
Turn the handle clockwise to push the pin and break the rivet of the roller chain

After this step, the roller chain rivet has broken. Some people choose to stop here and try to push the single needle out. This may be effective in some situations; however, we strongly advise against it because it is dangerous and difficult to do so. Therefore, we propose to proceed with the next step.
Roller Chain Breaker
ANSI 60 Roller Chain
Step 3
Repeat steps 1 and 2 to remove the second pin from the connector board

After this step, your chain should look like the photo below. Both rivets on one side of the chain are now broken and you can remove the pin link.
