ANSI #60-#100 | Metric 16B-20B Roller Chain Breaker
- group name
- Roller Chain Breaker
- Min Order
- 1 piece
- brand name
- CTS-ChinaTransmissionS
- model
- #60-#100 Chain Breaker Detacher
- Nearest port for product export
- Shanghai, Ningbo, Tianjing, Guangzhou
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash
- update time
- Wed, 25 Dec 2024 15:39:07 GMT
Paramtents
Material Steel
Color Natural
Accuracy Extreme Performance & Durability
Quality Easy Installation and Maintenance
Interchangeability Directly interchangeable with other brands
Packging & Delivery
-
Min Order1 piece
Briefing
Our roller chain breaker provides precise, safe chain disassembly for #25 to #160 roller chains and 05B to 32B roller chains.
Detailed

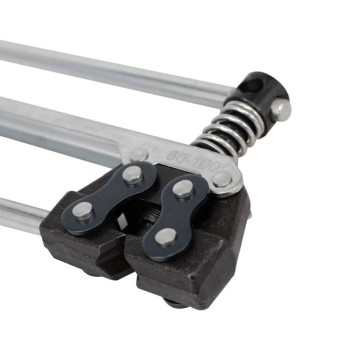

Roller Chain Breaker
Our roller chain breaker is a precision-engineered tool designed for efficient and safe disassembly of roller chains ranging from #25 to #160 (05B to 32B).
For a quotation or other information on roller chain breakers, please contact us and we will be happy to help you.
✔ High Quality
✔ High-Grade Steel
✔ Extreme Performance & Durability
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.
#60-#100 Roller Chain Breaker
Our #60-#100 Chain Breaker is made from tool-grade steel to ensure it can easily handle numerous cuts. The 60-100 roller chain puller is a universal tool designed to work with various sizes of ANSI, Metric, and Conveyor roller chains, ranging from #60 to #100. Our chain breaker comes with an extra easy-to-install replacement tip, nearly doubling the device's usable lifespan. Whether you break roller chains regularly or multiple times a day, our robust roller chain puller meets your demands.
#25-#60 roller chain breaker can cut roller chains from 3/4" to 1-1/4" chain pitch, so it can not only break ANSI #60,#80, #100roller chains, but also breaker Metric 12B, 16B and 20B roller chain.
Compatiable Chain Size with #60-#100 Chain Breaker | |
|
ANSI Roller Chain
|
#60, #80, #100 Roller Chain
|
|
Metric Roller Chain
|
12B, 16B, 20B Roller Chain
|
|
Conveyor Chain
|
C2060, C2080 Conveyor Chain
|
How to use Roller Chain Breaker
Safety Note:
Wear Protective Gear: Ensure you are wearing safety glasses and gloves before using the chain breaker.
Release Chain Tension: Ensure no tension on the roller chain; this may require a roller chain puller.
Shut-Off Equipment: Make sure all equipment that the chain is on is shut off before proceeding with the chain-breaking process.
Step 1
Clip the chain breaker onto the roller of the roller chain
It must be ensured that the tips of the roller chain breaker and the pins of the roller chain are precisely aligned. Otherwise, you may break the chain breaker tip or fail to break the roller chain.
Step 2
Turn the handle clockwise to push the pin and break the rivet of the roller chain
After this step, the roller chain rivet has broken. Some people choose to stop here and try to push the single needle out. This may be effective in some situations; however, we strongly advise against it because it is dangerous and difficult to do so. Therefore, we propose to proceed with the next step.
Step 3
Repeat steps 1 and 2 to remove the second pin from the connector board
After this step, your chain should look like the photo below. Both rivets on one side of the chain are now broken and you can remove the pin link.
