Metric 06B Pilot Bore Stainless Steel Sprockets

group name: ISO 06B Sprockets

Min Order: 1 piece

brand name: CTS-ChinaTransmissionS

model: 06B-1 Chain Sprocket

Nearest port for product export: Shanghai, Ningbo, Tianjing, Guangzhou

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash

update time: Thu, 07 Nov 2024 18:42:59 GMT

contact supplier

Paramtents

Material Stainless Steel
Color Natural
Surface Treatment Blackening/Galvanizing/Phosphating
Accuracy Precision teeth for optimum performance
Quality Superior Metric Sprocket
Interchangeability Directly interchangeable with other brands

Packging & Delivery

Min Order1 piece

Briefing

BS 06B pilot bore sprockets are designed for use in light industry and can be used to drive or lift or transport materials.

Detailed

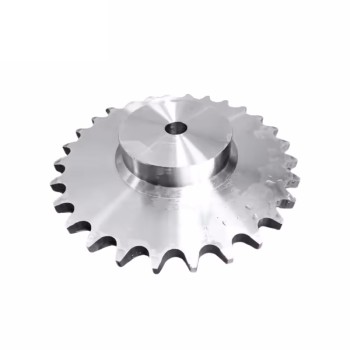

About Metric 06B Pilot Bore Stainless Steel Sprocket

The 06B stainless steel chain sprocket with hub is designed for the light industry. They can be used for driving as well as lifting or transporting materials. CTS® 06B Pilot Bore Stainless Steel Sprockets are manufactured for metric 06B roller chains to ISO, DIN, and BS228 standards. We also provide finished bore sprockets and taper bore sprockets.

For a quotation or other information, please contact us and we will be happy to help you.

Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features

High-precision Sprocket
Durable Sprocket
Directly interchangeable with other brands
OEM Sprocket

Metric 06B pilot bore sprocket dimension chart

Metric 06B Pilot Bore Stainless Steel Sprocket Dimension

SPROCKETS 3/8" × 7/32"

For Chain Acc. to DIN 8187

ISO/R 606

Metric 06B pilot bore sprocket teeth dimension chart

Tooth radius r3	10 mm
Radius width C	1.0 mm
Tooth width B1	5.3 mm

Part No.	No. Teeth	Outside Dia.（de）	Pitch Dia.（dp）	Hub Dia.（dm）	Bore Dia.（D1）	LTB（A）	Weight（Lbs.）
06B8	8	28.0	24.89	15	8	20	0.03
06B9	9	31.0	27.85	18	8	20	0.04
06B10	10	34.0	30.82	20	8	20	0.05
06B11	11	37.0	33.80	22	8	25	0.08
06B12	12	40.0	36.80	25	8	25	0.10
06B13	13	43.0	39.79	28	10	25	0.13
06B14	14	46.3	42.80	31	10	25	0.16
06B15	15	49.3	45.81	34	10	25	0.19
06B16	16	52.3	48.82	37	10	28	0.24
06B17	17	55.3	51.83	40	10	28	0.28
06B18	18	58.3	54.85	43	10	28	0.33
06B19	19	61.3	57.87	45	10	28	0.36
06B20	20	64.3	60.89	46	10	28	0.39
06B21	21	68.0	63.91	48	12	28	0.42
06B22	22	71.0	66.93	50	12	28	0.46
06B23	23	73.5	69.95	52	12	28	0.49
06B24	24	77.0	72.97	54	12	28	0.54
06B25	25	80.0	76.02	57	12	28	0.60
06B26	26	83.0	79.02	60	12	28	0.66
06B27	27	86.0	82.05	60	12	28	0.67
06B28	28	89.0	85.07	60	12	28	0.69
06B29	29	92.0	88.09	60	12	28	0.70
06B30	30	94.7	91.12	60	12	28	0.72
06B31	31	98.3	94.15	65	14	30	0.87
06B32	32	101.3	97.17	65	14	30	0.89
06B33	33	104.3	100.20	65	14	30	0.91
06B34	34	107.3	103.23	65	14	30	0.92
06B35	35	110.4	106.26	65	14	30	0.95
06B36	36	113.4	109.29	70	14	30	1.05
06B37	37	116.4	112.32	70	14	30	1.09
06B38	38	119.5	115.35	70	14	30	1.10
06B39	39	122.5	118.37	70	14	30	1.12
06B40	40	125.5	121.40	70	14	30	1.14
06B41	41	128.5	124.43	78	14	32	1.44
06B42	42	131.6	127.46	78	14	32	1.56
06B43	43	134.6	130.49	78	14	32	1.60
06B44	44	137.6	133.52	78	14	32	1.64
06B45	45	140.7	136.55	78	14	32	1.66
06B46	46	143.7	139.58	78	14	32	1.67
06B47	47	146.7	142.61	78	14	32	1.71
06B48	48	149.7	145.64	78	14	32	1.74
06B49	49	152.7	148.66	78	14	32	1.78
06B50	50	155.7	151.69	78	14	32	1.80
06B51	51	158.7	154.72	78	14	32	1.82
06B52	52	161.8	157.75	78	14	32	1.84
06B53	53	164.8	160.78	78	14	32	1.86
06B54	54	167.8	163.82	78	14	32	1.87
06B55	55	170.8	166.85	78	14	32	1.89
06B56	56	173.8	169.88	78	14	32	1.92
06B57	57	176.9	172.91	78	14	32	1.96
06B58	58	179.9	175.93	78	14	32	1.97
06B59	59	183.0	178.96	78	14	32	1.99
06B60	60	186.0	181.99	78	14	32	2.03
06B62	62	192.1	188.06	78	14	32	2.06
06B64	64	198.2	194.12	78	14	32	2.13
06B65	65	201.6	197.15	*78	14	32	2.17
06B66	66	204.6	200.18	*78	14	32	2.21
06B68	68	210.7	206.24	*78	14	32	2.29
06B70	70	216.7	212.30	*78	14	32	2.36
06B72	72	222.8	218.37	*78	14	32	2.45
06B75	75	231.9	227.46	*78	14	32	2.57
06B76	76	234.9	230.49	*78	14	32	2.67
06B78	78	241.0	236.55	*78	14	32	2.70
06B80	80	247.1	242.61	*78	14	32	2.79
06B85	85	262.2	257.77	*80	14	32	3.08
06B90	90	277.4	272.93	*80	14	32	3.33
06B95	95	292.5	288.08	*80	14	32	3.59
06B100	100	307.7	303.25	*80	14	32	3.87
06B110	110	338.0	333.55	*80	14	32	4.46
06B114	114	349.5	345.68	*80	14	32	4.70
06B120	120	368.3	363.86	*80	14	32	5.11
06B125	125	383.5	379.02	*80	14	32	5.46
