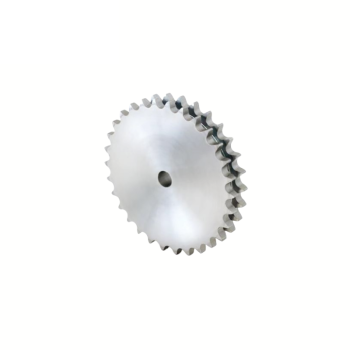

Metric 08A-2 Stainless Steel Plate Wheel Sprockets

Metric 08A-2 Stainless Steel Plate Wheel Sprockets
Metric 08A-2 Stainless Steel Plate Wheel SprocketsMetric 08A-2 Stainless Steel Plate Wheel Sprockets
group name
ISO 08B Sprockets
Min Order
1 piece
brand name
CTS-ChinaTransmissionS
model
08A Plate Wheel Sprocket
Nearest port for product export
Shanghai, Ningbo, Tianjing, Guangzhou
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash
update time
Fri, 22 Nov 2024 05:44:51 GMT

Paramtents

  • Material Stainless Steel

  • Color Natural

  • Surface Treatment Blackening/Galvanizing/Phosphating

  • Accuracy Precision teeth for optimum performance

  • Quality Superior Metric Sprocket

  • Interchangeability Directly interchangeable with other brands

Packging & Delivery

  • Min Order1 piece

Briefing

Metric 08A-2 stainless steel plate wheel sprockets are suitable for all roller chains according to the B series.

Detailed

About Metric 08A Duplex Stainless Steel Plate Wheel Sprocket

The CTS® 08A duplex stainless steel platewheel sprockets are suited for the 08B duplex roller chains. Our 08A-2 stainless steel sprockets are ISO compliant, with reliable quality and excellent performance characteristics.  You can see more parameters about the 08A double-strand sprockets in the table below.


For quotation or other information on Metric stainless steel A-plate wheel sprockets, please contact us and we will be happy to help you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket
Metric 08A-2 plate wheel sprocket dimension chart

Metric 08A-2 Stainless Steel Plate Wheel Sprocket Dimension

SPROCKETS  1/2" × 5/16"
For Chain Acc. to DIN 8187
ISO/R 606
Metric 08A-2 plate wheel sprocket teeth dimension chart
Tooth radius r3
13 mm
Radius width C
1.3 mm
Tooth width b1
7 mm
Tooth width B2
21 mm
Part No.No. TeethOutside Dia.(de)Pitch Dia.(dp)Bore Dia.(D2)Weight(Lbs.)
08A-2-8837.2 33.18 100.07
08A-2-9941.0 37.13 100.10
08A-2-101045.2 41.10 100.13
08A-2-111148.7 45.07 100.17
08A-2-121253.0 49.07 100.21
08A-2-131357.4 53.06 100.25
08A-2-141461.8 57.07 100.30
08A-2-151565.5 61.09 100.36
08A-2-161669.5 65.10 120.41
08A-2-171773.6 69.11 120.47
08A-2-181877.8 73.14 120.54
08A-2-191981.7 77.16 120.61
08A-2-202085.8 81.19 120.68
08A-2-212189.7 85.22 160.75
08A-2-222293.8 89.24 160.83
08A-2-232398.2 93.27 160.92
08A-2-2424101.8 97.29 161.01
08A-2-2525105.8 101.33 161.10
08A-2-2626110.0 105.36 161.20
08A-2-2727114.0 109.40 161.31
08A-2-2828118.0 113.42 161.42
08A-2-2929122.0 117.46 161.53
08A-2-3030126.0 121.50 161.65
08A-2-3131130.2 125.54 161.77
08A-2-3232134.3 129.56 161.90
08A-2-3333138.4 133.60 162.02
08A-2-3434142.6 137.64 162.16
08A-2-3535146.0 141.68 162.30
08A-2-3636151.0 145.72 202.42
08A-2-3737154.6 149.76 202.56
08A-2-3838158.6 153.80 202.71
08A-2-3939162.7 157.83 202.87
08A-2-4040166.8 161.87 203.03
08A-2-4141171.4 165.91 203.20
08A-2-4242175.4 169.94 203.36
08A-2-4343179.7 173.98 203.53
08A-2-4444183.8 178.03 203.71
08A-2-4545188.0 182.07 203.89
08A-2-4646192.1 186.10 204.07
08A-2-4747196.2 190.14 204.29
08A-2-4848200.3 194.18 204.47
08A-2-4949204.3 198.22 204.65
08A-2-5050208.3 202.26 204.83
08A-2-5151212.1 206.30 255.01
08A-2-5252216.1 210.34 255.26
08A-2-5353220.2 214.92 255.47
08A-2-5454224.1 218.43 255.66
08A-2-5555228.1 222.46 255.87
08A-2-5656232.2 226.50 256.08
08A-2-5757236.4 230.54 256.30
08A-2-5858240.5 234.58 256.52
08A-2-5959244.5 238.62 256.82
08A-2-6060248.6 242.66 257.05
08A-2-6262256.9 250.74 257.53
08A-2-6464265.1 258.82 258.01
08A-2-6565269.0 262.86 258.25
08A-2-6666273.0 266.90 258.50
08A-2-6868281.0 274.99 259.21
08A-2-7070289.0 283.07 259.74
08A-2-7272297.2 291.15 2510.30
08A-2-7575309.2 303.28 2511.15
08A-2-7676313.3 307.32 2511.45
08A-2-7878321.4 315.40 2512.31
08A-2-8080329.4 323.49 2512.93
08A-2-8585349.0 343.69 2514.52
08A-2-9090369.9 363.90 2516.31
08A-2-9595390.1 384.11 2518.14
08A-2-100100410.3 404.32 2520.07
08A-2-110110450.7 444.74 2524.21
08A-2-114114466.9 460.91 2525.99
08A-2-120120491.2 485.16 2528.76
08A-2-125125511.3 505.37 2531.16
