Metric 24A-3 Stainless Steel Plate Wheel Sprockets

Metric 24A-3 Stainless Steel Plate Wheel Sprockets
Metric 24A-3 Stainless Steel Plate Wheel SprocketsMetric 24A-3 Stainless Steel Plate Wheel Sprockets
group name
ISO 24B Sprockets
Min Order
1 piece
brand name
CTS-ChinaTransmissionS
model
24A Plate Wheel Sprocket
Nearest port for product export
Shanghai, Ningbo, Tianjing, Guangzhou
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash
update time
Fri, 22 Nov 2024 05:55:37 GMT

Paramtents

  • Material Stainless Steel

  • Color Natural

  • Surface Treatment Blackening/Galvanizing/Phosphating

  • Accuracy Precision teeth for optimum performance

  • Quality Superior Metric Sprocket

  • Interchangeability Directly interchangeable with other brands

Packging & Delivery

  • Min Order1 piece

Briefing

Metric 24A-3 stainless steel plate wheel sprockets are suitable for all roller chains according to the B series.

Detailed

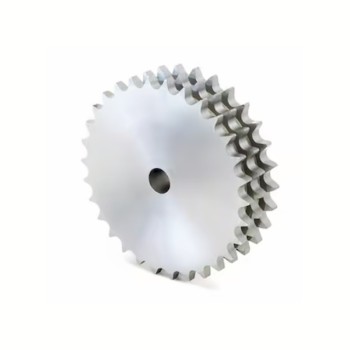

About Metric 24A Triplex Stainless Steel Plate Wheel Sprocket

Metric 24A triplex stainless steel sprockets are durable and high-quality industrial sprockets designed for heavy-duty applications. CTS® chain sprockets are constructed with high-grade stainless stainless steel materials to ensure longevity and resistance to wear and tear. Additionally, 24A stainless steel plate wheel sprockets offer high durability and longevity, reducing the need for frequent replacements.


For quotation or other information on chain sprockets, please contact us; we will gladly help you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket
Metric 24A-3 plate wheel sprocket dimension chart

Metric 24A-3 Stainless Steel Plate Wheel Sprocket Dimension

SPROCKETS  1"1/2 × 1"
For Chain Acc. to DIN 8187
ISO/R 606
Metric 24A-3 plate wheel sprocket teeth dimension chart
Tooth radius r3
38 mm
Radius width C
4 mm
Tooth width b1
23.6 mm
Tooth width B2
72 mm
Tooth width B3
120.3 mm
Part No.No. TeethOutside Dia.(de)Pitch Dia.(dp)Bore Dia.(D3)Weight(Lbs.)
24A-3-88115.099.55  253.67
24A-3-99126.4111.40  25  5.10
24A-3-1210138.0123.29  25  6.75
24A-3-1111150.0135.21  25  8.42
24A-3-1212162.0147.22  2510.50
24A-3-1313174.2159.18  2512.81
24A-3-1414186.2171.22  2515.33
24A-3-1515198.2183.26  2518.08
24A-3-1616210.3195.30  2521.04
24A-3-1717222.3207.34  2524.22
24A-3-1818234.321,942   2527.61
24A-3-1919246.5231.49  2531.23
24A-3-2020258.6243.57  2535.06
24A-3-2121270.6255.65  3038.60
24A-3-2222282.7267.73  3042.87
24A-3-2323294.8279.80  3047.36
24A-3-2424306.8291.88  3052.07
24A-3-2525319.0304.00  3056.99
24A-3-2626331.0316.08  3062.14
24A-3-2727343.2328.19  3067.50
24A-3-2828355.2340.27  3073.08
24A-3-2929367.3352.38  3079.11
24A-3-3030379.5364.50  4084.45
24A-3-3131391.6376.62  092.20
24A-3-3232403.7388.69  4097.98
24A-3-3333415.8400.81  0105.29
24A-3-3434427.8412.93  40111.46
24A-3-3535440.0425.04  40117.91
24A-3-3636452.0437.16  40125.87
24A-3-3737464.2449.27  40132.75
24A-3-3838476.2461.39  40139.70
24A-3-3939488.5473.50  40150.56
24A-3-4040500.6485.62  40158.11
24A-3-4141512.6497.72  40167.73
24A-3-4242524.7509.83  40175.74
24A-3-4343536.8521.95  40183.94
24A-3-4444549.0534.07  40192.40
24A-3-4545561.2546.19  40201.04
24A-3-4646573.3558.30  40212.24
24A-3-4747585.4570.42  40221.30
24A-3-4848597.4582.54  40230.46
24A-3-4949609.5594.66  40242.65
24A-3-5050621.7606.78  40252.46
24A-3-5151633.8618.90  40265.37
24A-3-5252646.0631.01  40275.68
24A-3-5353658.0643.13  40286.02
24A-3-5454670.2655.28  40296.72
24A-3-5555682.3667.40  40307.53
24A-3-5656694.4679.51  40318.54
24A-3-5757706.5691.63  40329.74
24A-3-5858718.6703.74  40344.96
24A-3-5959730.7715.86  40356.67
24A-3-6060742.8727.97  40368.58
24A-3-6262767.2752.24  40397.57
24A-3-6464791.3776.48  40422.94
24A-3-6565803.4788.59  40435.97
24A-3-6666815.6800.71  40449.31
24A-3-6868839.8824.98  40475.92
24A-3-7070864.2849.21  40504.45
24A-3-7272888.4873.48  40533.10
24A-3-7575924.8909.83  40577.68
24A-3-7676936.9921.98  40592.90
24A-3-8080985.4970.44  40663.08
24A-3-85851046.01031.10  40747.14
24A-3-95951167.31152.33  40930.47
