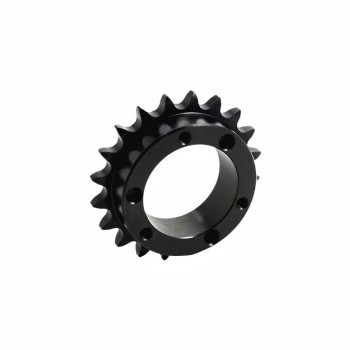

ANSI 200B Sprocket With QD Bushing

ANSI 200B Sprocket With QD Bushing
ANSI 200B Sprocket With QD BushingANSI 200B Sprocket With QD BushingANSI 200B Sprocket With QD Bushing
group name
ANSI 200 Sprockets
Min Order
1 piece
brand name
CTS-ChinaTransmissionS
model
200B Sprockets
Nearest port for product export
Shanghai, Ningbo, Tianjing, Guangzhou
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash
update time
Fri, 22 Nov 2024 05:28:39 GMT

Paramtents

  • Material Carbon Steel

  • Color Black

  • Surface Treatment Blackening/Galvanizing/Phosphating

  • Accuracy Precision teeth for optimum performance

  • Quality Superior ANSI Sprocket

  • Interchangeability Directly interchangeable with other brands

Packging & Delivery

  • Min Order1 piece

Briefing

#200B sprockets with QD Bushing are precision-engineered for optimal power transmission and industrial machinery.

Detailed

About 200B Sprockets with QD Bushings

200B sprockets with QD bushings are designed to meet ANSI standards, it features a Quick Detachable (QD) Taper Lock bushing, which allows for easy installation and removal without damaging the shaft or sprocket. The QD bushing system features a flange that allows for a quick and secure connection between the bushing and the sprocket. Their compatibility with standard chains and flexibility in shaft mounting make them a versatile and reliable choice for engineers and technicians.


For a quotation or other information on #200B sprockets, please contact us and we will be happy to help you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket
200B sprocket with qd bushings dimension chart

200B Sprocket with QD Bushings Technical Data

Pitch
2 1/2"
Roller φ
1.562"
No.
Teeth
Sprocket
Size
Bushing
Type
DeDpType Max
Bore
L1L2 CYP GVX B1Weight(Approx)
With HubRim Only
12200F12F10.830  9.660 C3 15/163 5/8 46 5/811  5/16 1 1/82 1/21.389 25.5 24.0
13200J13J11.640  10.447 C4  7/164 1/2 57 1/41  3/162 1 13/163  3/161.389 50.5 32.0
14200J14J12.460  11.235 C4  7/164 1/2 57 1/41  3/162 1 13/163  3/161.389 57.5 39.0
15200J15J13.260  12.025 C4  7/164 1/2 57 1/41  3/162 1 13/163  3/161.389 62.5 44.0
16200J16J14.070  12.815 C4  7/164 1/2 57 1/41  3/162 1 13/163  3/161.389 68.5 50.0
17200M17M14.870  13.605 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 113.0 76.0
18200M18M15.680  14.397 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 119.0 82.0
19200M19M16.480  15.910 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 125.0 88.0
20200M20M17.290  15.982 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 134.0 97.0
21200M21M18.090  16.775 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 140.0 103.0
22200M22M18.890  17.567 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 149.0 112.0
23200M23M19.690  18.360 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 157.0 120.0
24200M24M20.490  19.152 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 168.0 131.0
25200M25M21.290  19.947 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 175.0 138.0
26200M26M22.090  20.740 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 185.0 148.0
28200M28M23.690  22.330 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 205.0 168.0
30200M30M25.290  23.917 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 227.0 190.0
32200M32M26.880  25.505 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 251.0 214.0
35200M35M29.280  27.890 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 265.0 228.0
40200M40M33.270  31.865 C15 1/26 3/4 6 3/492 23/322 23/32 2  5/161 1/25  3/161.389 315.0 278.0
45200N45N37.250  35.840 C15 7/88 1/8 8 1/8103 13/323 13/32 3  3/161 11/166 1/41.389 405.0 348.0
54200N54N44.420  42.995 C15 7/88 1/8 8 1/8103 13/323 13/32 3  3/161 11/166 1/41.389 535.0 478.0
60200N60N49.200  47.767 C15 7/88 1/8 8 1/8103 13/323 13/32 3  3/161 11/166 1/41.389 665.0 608.0
