Metric 08B Double-Single Sprockets

Metric 08B Double-Single Sprockets
Metric 08B Double-Single SprocketsMetric 08B Double-Single Sprockets
group name
ISO 08B Sprockets
Min Order
1 piece
brand name
CTS-ChinaTransmissionS
model
08B Double Single Sprockets
Nearest port for product export
Shanghai, Ningbo, Tianjing, Guangzhou
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash
update time
Fri, 22 Nov 2024 05:38:35 GMT

Paramtents

  • Material Carbon Steel

  • Color Nature

  • Surface Treatment Blackening/Galvanizing/Phosphating

  • Accuracy Precision teeth for optimum performance

  • Quality Superior ANSI Sprocket

  • Interchangeability Directly interchangeable with other brands

Packging & Delivery

  • Min Order1 piece

Briefing

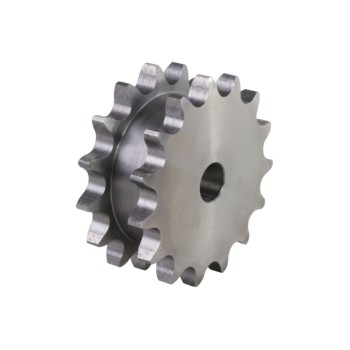

The 08B double single sprocket is a specialized sprocket designed to accommodate two single-strand chains.

Detailed

About 08B Double Single Sprockets

The 08B Double Single Sprocket is a specialized sprocket designed for use with two separate simplex roller chains according to the DIN 8187 standard. It features a double configuration to accommodate two single chains running parallel to each other, making it ideal for applications such as conveyor systems where multiple shafts or rollers are driven in series.


For a quotation or other information on 08B sprockets, please contact us and we will be happy to help you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket
08B double single sprocket dimension chart

08B Double Single Sprockets Technical Data

Pitch
12.7 mm
Roller φ
8.51 mm
Sprocket SizeZde dpdidmis DAB h14 C maxL
08B-1 13 57.4 53.07 44.56 44.17 10 24.8 7.2 37 32
15 65.5 61.08 52.57 52.24 10 24.8 7.2 45 32
17 73.6 69.12 60.61 60.31 12 24.8 7.2 53 32
19 81.7 77.16 68.65 68.39 12 24.8 7.2 62 32
21 89.7 85.21 76.71 76.46 15 24.8 7.2 70 32
23 98.2 93.27 84.76 84.54 15 24.8 7.2 78 32
25 105.8 101.33 92.82 92.62 15 24.8 7.2 86 32
