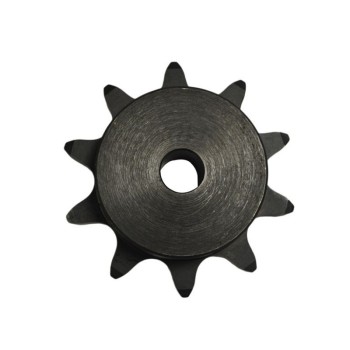

C2080 Double Pitch Sprocket

C2080 Double Pitch Sprocket
C2080 Double Pitch SprocketC2080 Double Pitch SprocketC2080 Double Pitch SprocketC2080 Double Pitch Sprocket
FOB Price

US $0.501 - 10,000 piece

group name
ANSI 2080 Sprockets
Min Order
1 piece
brand name
CTS-ChinaTransmissionS
model
2080 chain sprocket
Nearest port for product export
Shanghai, Ningbo, Tianjing, Guangzhou
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash
update time
Thu, 07 Nov 2024 20:36:11 GMT

Paramtents

  • Material Carbon Steel

  • Color Black

  • Surface Treatment Blackening/Galvanizing/Phosphating

  • Accuracy Precision teeth for optimum performance

  • Quality Superior ANSI Sprocket

  • Interchangeability Directly interchangeable with other brands

Packging & Delivery

  • Min Order1 piece

Briefing

These double pitch sprocket can easily be bored to a metric or standard size to fit your application.

Detailed

About C2080 Double Pitch Chain Sprockets

2080 double-pitch sprockets are manufactured specifically for the C2080 double-pitch roller chain. Our double-pitch sprockets are crafted from high-quality steel, with extra-hardened teeth and a black oxide coating for enhanced durability. These high-strength sprockets are precision-engineered to meet strict tolerance requirements. Additionally, these double pitch sprocket has a stock bore but we can make the sprocket bored out to your requested bore size.


For a quotation or other information on C2080 sprockets, please contact us and we will be happy to help you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket
C2080 Chain Sprocket Dimension Chart

C2080 Double Pitch Chain Sprocket Technical Data

Pitch
2"
Tooth width B1
0.575"
Sprocket Size  No.
Teeth
Outside Dia(De) Pitch Dia(Dp)TypeBore Dia(D1)  Hub Dia(Dm)LTB(A)Wt.Lbs.
(Approx.)
TypeNumberBore Dia(D1) Wt.
Lbs.
(Approx.)
MinMax
2080B1111 4.010 3.694  B1      1  1/2 2 13/16★ 1 5/82.5
2080B1212 4.330 4.000  B1      1 11/162 1/8★ 1 5/83.2
2080B13134.660 4.304  B1      1 25/322 25/32 1 1/23.3
2080B1414 4.980 4.610  B1      2  1/8 3 1/8 1 1/24.0
2080B1515 5.300 4.917  B1      2  9/323 29/64 1 1/24.8
2080B1616 5.630 5.226  B1      2 17/323 51/64 1 1/25.7
2080B1717 5.950 5.536  B1      2  3/4  1 1/26.4 A2080A17 15/163.4
2080B1818 6.270 5.848  B1      2  3/4 4 1/4 1 1/27.4 A2080A18 15/163.8
2080B1919 6.590 6.160  B1      2  3/4 4 1/4 1 1/27.7 A2080A19 15/164.3
2080B2020 6.910 6.472  B1      2  3/4 4 1/4 1 1/28.3 A2080A20 15/164.8
2080B2121 7.230 6.785  B1      2  3/4 4 1/4 1 3/49.4 A2080A21 15/165.3
2080B2222 7.560 7.099  B1      2  3/4 4 1/4 1 3/410.0 A2080A22 15/165.8
2080B2323 7.880 7.413  B1      2  3/4 4 1/4 1 3/410.5 A2080A23 15/166.4
2080B2424 8.200 7.727  B1      2  3/4 4 1/4 1 3/411.1 A2080A24 15/167.1
2080B2525 8.520 8.042  B1      2  3/4 4 1/4 1 3/412.0 A2080A25 15/167.5
2080B2626 8.840 8.357  B1  1/4 2  1/4 4 3/4 14.8 A2080A26 1  3/168.3
2080B2828 9.480 8.988  B1  3/162  1/4 4 3/4 16.6 A2080A28 1  3/169.2
2080B3030 10.110 9.620  B1  3/162  1/4 4 3/4 17.8 A2080A30 1  3/1610.7
Has recessed groove in hub for chain clearance.
Maximum bores shown will accommodate standard keyseat and set screw over keyseat.
Slightly large bores are possible with no keyseat, shallow keyseat, or set screw at angle to the keyseat.
