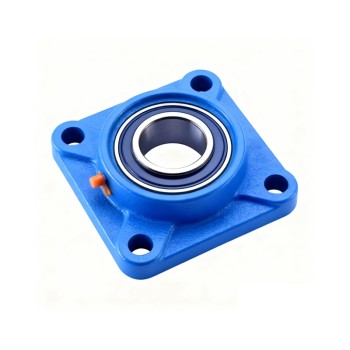

UKF200 Square Flanged Ball Bearing Units

group name: Square Flanged Units

Min Order: 1 piece

brand name: CTS-ChinaTransmissionS

model: UKF 200

Nearest port for product export: Shanghai, Ningbo, Tianjing, Guangzhou

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash

update time: Sat, 06 Dec 2025 10:35:59 GMT

contact supplier

Paramtents

Bearing Insert UK2 Series
Housing Type 4-bolts square flange housing F200
Material Cast Iron

Packging & Delivery

Min Order1 piece

Briefing

UKF200 Square Flanged Bearing Units provide secure four-bolt mounting, strong shaft support, and reliable sealed performance.

Detailed

Square Flanged Ball Bearing Units are ready-to-install housed bearing assemblies that combine a deep-groove ball bearing insert with a four-bolt square flange housing. They are designed for secure,face-mounted installation, making them ideal for applications where a shaft passes through a wall, frame, or mounting panel and requires stable and reliable support.

These units feature a robust square four-bolt flange design that ensures firm attachment to flat surfaces and provides excellent resistance to radial and moderate axial loads.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

UKF200 Square Flanged Units Dimensions

Unit NO.	Dimensions( (mm/in.)										Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
Unit NO.	d	a	e	i	g	I	S	Z	t	B1	Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
UKF205; H2305	20	95	70	16	14	27	12	35.5	40	35	M10	UK205; H2305	F205	0.78
205; HE2305	3/4	3-3/4	2-3/4	5/8	35/64	1-1/16	15/32	1-25/64	1-9/16	1.378	3/8	UK205; HE2305	F205	0.78
UKF206; H2306	25	108	83	18	14	31	12	39	44.5	38	M10	UK206; H2306	F206	109
206; HS2306	7/8	4-1/4	3-17/64	45/64	35/64	1-7/32	15/32	1-17/32	1-3/4	1.496	3/8	UK206; HS2306
206; HE2306	1	4-1/4	3-17/64	45/64	35/64	1-7/32	15/32	1-17/32	1-3/4	1.496	3/8	UK206; HE2306
UKF207; H2307	30	117	92	19	16	34	14	42.5	48.5	43	M12	UK207; H2307	F207	1.41
207; HS2307	1-1/8	4-39/64	3-5/8	3/4	5/8	1-11/32	35/64	1-43/64	1-29/32	1.693	7/16	UK207; HS2307	F207	1.41
UKF208: H2308	35	130	102	21	16	36	16	46.5	55.5	46	M14	UK208; H2308	F208	1.74
208; HE2308	1-1/4	5-1/8	4-1/64	53/64	5/8	1-27/64	5/8	1-53/64	2-3/16	1.811	1/2	UK208; HE2308
208; HS2308	1-3/8	5-1/8	4-1/64	53/64	5/8	1-27/64	5/8	1-53/64	2-3/16	1.811	1/2	UK208; HS2308
UKF209; H2309	40	137	105	22	18	38	16	48.5	56.5	50	M14	UK209; H2309	F209	2.12
209; HA2309	1-7/16	5-13/32	4-9/64	55/64	23/32	1-1/2	5/8	1-29/32	2-7/32	1.969	1/2	UK209; HA2309
209; HE2309	1-1/2											UK209; HE2309
209; HS2309	1-5/8											UK209; HS2309
UKF210; H2310	45	143	111	22	18	40	16	50	59.5	55	M14	UK210; H2310	F210	2.49
210; HS2310	1-5/8	5-5/8	4-3/8	55/64	23/32	1-9/16	5/8	1-31/32	2-11/32	2.165	1/2	UK210; HS2310
210; HA2310	1-11/16											UK210; HA2310
210; HE2310	1-3/4											UK210; HE2310
UKF211; H2311	50	162	130	25	20	43	19	54.5	63	59	M16	UK211; H2311	F211	3.28
211; HS2311	1-7/8	6-3/8	5-1/8	63/64	25/32	1-11/16	3/4	2-9/64	2-31/64	2.323	5/8	UK211; HS2311
211; HA2311	1-15/16											UK211; HA2311
211; HE2311	2											UK211; HE2311
UKF212; H2312	55	175	143	29	20	48	19	61	73.5	62	M16	UK212; H2312	F212	4.03
212; HS2312	2-1/8	6-57/64	5-5/8	1-9/64	25/32	1-57/64	3/4	2-13/32	2-57/64	2.441	5/8	UK212; HS2312	F212	4.03
UKF213; H2313	60	187	149	30	22	50	19	64	74.5	65	M16	UK213; H2313	F213	4.93
213; HA2313	2-3/16	7-23/64	5-55/64	1-3/16	55/64	1-31/32	3/4	2-33/64	2-15/16	2.559	5/8	UK213; HA2313
213; HE2313	2-1/4											UK213; HE2313
213; HS2313	2-3/8											UK213; HS2313
UKF215: H2315	65	200	159	34	22	56	19	71	83.5	73	M16	UK215; H2315	F215	6.33
215; HA2315	2-7/16	7-7/8	6-17/64	1-11/32	55/64	2-7/32	3/4	2-51/64	3-9/32	2.874		UK215; HA2315
215; HE2315	2-1/2	7-7/8	6-17/64	1-11/32	55/64	2-7/32	3/4	2-51/64	3-9/32	2.874	5/8	UK215; HE2315
UKF216; H2316	70	208	165	34	22	58	23	73.5	88.5	78	M20	UK216; H2316	F216	7.37
216; HA2316	2-11/16	8-3/16	6-1/2	1-11/32	55/64	2-9/32	29/32	2-57/64	3-31/64	3.071		UK216; HA2316
216; HE2316	2-34	8-3/16	6-1/2	1-11/32	55/64	2-9/32	29/32	2-57/64	3-31/64	3.071	3/4	UK216; HE2316
UKF217: H2317	75	220	175	36	24	63	23	77	92.6	82	M20	UK217; H2317	F217	9.09
217; HA2317	2-15/16	8-21/32	6-57/64	1-27/64	15/16	2-15/32	29/32	3-1/32	3-41/64	3.228	3/4	UK217; HA2317
217; HE2317	3	8-21/32	6-57/64	1-27/64	15/16	2-15/32	29/32	3-1/32	3-41/64	3.228	3/4	UK217; HE2317
UKF218: H2318	80	235	187	40	24	68	23	81.5	101.5	86	M20	UK218; H2318	F218	10.91
218; HA2318	3-3/16	9-1/4	7-23/64	1-37/64	15/16	2-11/16	29/32	3-13/64	4	3.386	3/4	UK218; HA2318	F218	10.91
