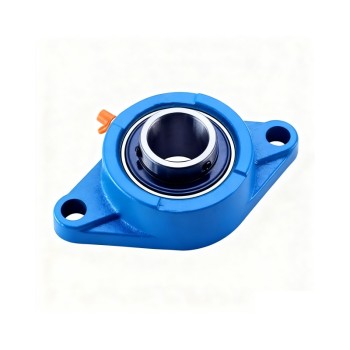

UCFT200 Oval Flanged Units offer compact two-bolt mounting, reliable sealing, and stable shaft support for diverse industrial applications.
Oval Flanged Ball Bearing Units are compact,ready-to-install assemblies that combine a deep-groove ball bearing insert with a durable oval (two-bolt)flange housing. Their space-saving two-bolt design makes them ideal for installations where mounting room is limited or where the distance between bearings must be minimized.
Oval Flanged Ball Bearing Units are widely used in conveyors, light-duty machinery, packaging equipment, and general industrial applications where a compact, stable, and easy-to-mount bearing solution is required.
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.
UCFT200 Oval Flanged Units Dimensions
Unit
NO. | Dimensions(mm/in.) | Bolt Size
mm/in. |
Bearing
No. | Housing
No. | Weight
(kg) |
|---|
| d | a | e |
I | g | I |
S | b | Z |
B | n |
|---|
| UCFT204 | 20 | 112 |
89.5 | 19.0 | 11.0 |
29.0 | 10.5 | 60.0 |
37.3 | 31.0 | 12.7 |
M8 | UC204 | FT204 |
0.45 |
| 204-12 | 3/4 | 4-13/32 | 3-33/64 |
3/4 | 7/16 | 1-9/64 | 27/64 |
2-3/8 | 1-15/32 | 1.2205 | 0.500 |
5/16 | UC204-12 | 0.45 |
| UCFT205 | 25 | 124 |
99.0 | 20.0 | 13.0 |
31.0 | 13.0 | 70.0 |
39.8 | 34.1 | 14.3 |
M10 | UC205 | FT205 |
0.63 |
| 205-13 | 3/16 | 4-7/8 | 3-57/64 |
25/32 | 1/2 | 1-7/32 | 33/64 |
2-3/4 | 1-37/64 | 1.3425 |
0.563 | 3/8 | UC205-13 | 0.67 |
| 205-14 | 7/8 | UC205-14 | 0.66 |
| 205-15 | 15/16 | UC205-15 | 0.64 |
| 205-16 | 1 | UC205-16 | 0.63 |
| UCFT206 | 30 | 141 |
116.5 | 21.0 | 13.0 |
34.0 | 13.0 | 82.0 |
43.2 | 38.1 | 15.9 |
M10 | UC206 | FT206 |
0.89 |
| 206-17 | 1-1/16 | 5-35/64 | 4-37/64 |
53/64 | 1/2 | 1-11/32 | 33/64 |
3-15/64 | 1-45/64 | 1.5000 |
0.626 | 3/8 | UC206-17 | 0.90 |
| 206-18 | 1-1/8 | UC206-18 | 0.91 |
| 206-19 | 1-3/16 | UC206-19 | 0.89 |
| 206-20 | 1-1/4 | UC206-20 | 0.88 |
| UCFT207 | 35 | 156 |
130.0 | 21.5 | 14.0 |
36.5 | 14.0 | 95.0 |
46.9 | 42.9 | 17.5 |
M12 | UC207 | FT207 |
1.25 |
| 207-20 | 1-1/4 | 6-9/64 | 5-1/8 |
27/32 | 35/64 | 1-7/16 | 35/64 |
3-47/64 | 1-27/32 | 1.6890 |
0.689 | 7/16 | UC207-20 | 1.32 |
| 207-21 | 1-5/16 | UC207-21 | 1.29 |
| 207-22 | 1-3/8 | UC207-22 | 126 |
| 207-23 | 1-7/16 | UC207-23 | 1.23 |
| UCFT208 | 40 | 171 |
143.5 | 24.0 | 14.0 |
39.0 | 14.0 | 105.0 |
54.2 | 49.2 | 19.0 |
M12 | UC208 | FT208 |
1.61 |
| 208-24 | 1-1/2 | 6-47/64 | 5-21/32 |
61/64 | 35/64 | 1-17/32 | 35/64 |
4-9/64 | 2-9/64 | 1.9370 |
0.748 | 7/16 | UC208-24 | 1.65 |
| 208-25 | 1-9/16 | UC208-25 | 1.62 |
| UCFT209 | 45 | 179 |
148.5 | 24.0 | 14.0 |
40.0 | 16.0 | 111.0 |
54.2 | 49.2 | 19.0 |
M14 | UC209 | FT209 |
1.81 |
| 209-26 | 1-5/8 | 7-3/64 | 5-55/64 |
61/64 | 35/64 | 1-37/64 | 5/8 |
4-3/8 | 2-9/64 | 1.9370 | 0.748 |
1/2 | UC209-26 | 1.91 |
| 209-27 | 1-11/16 | UC209-27 | 1.87 |
| 209-28 | 1-3/4 | UC209-28 | 1.83 |
| UCFT210 | 50 | 189 |
157.0 | 28.5 | 14.0 |
47.0 | 16.0 | 116.0 |
61.1 | 51.6 | 19.0 |
M14 | UC210 | FT210 |
2.15 |
| 210-29 | 1-13/16 | 7-7/16 | 6-3/16 |
1-1/8 | 35/64 | 127/32 | 5/8 |
4-9/16 | 2-13/32 | 2.0315 |
0.748 | 1/2 | UC210-29 | 2.27 |
| 210-30 | 1-7/8 | UC210-30 | 2.22 |
| 210-31 | 1-15/16 | UC210-31 | 2.17 |
| 210-32 | 2 | UC210-32 | 2.13 |
| UCFT211 | 55 | 216 |
184.0 | 32.0 | 20.0 |
50.0 | 18.0 | 133.0 |
65.4 | 55.6 | 22.2 |
M16 | UC211 | FT211 |
3.20 |
| 211-32 | 2 | 8-1/2 | 7-1/4 |
1-17/64 | 25/32 | 1-31/32 |
45/64 | 5-15/64 | 2-37/64 |
2.1890 | 0.874 | 5/8 | UC211-32 |
3.35 |
| 211-33 | 2-1/16 | UC211-33 | 3.29 |
| 211-34 | 2-1/8 | UC211-34 | 3.25 |
| 211-35 | 2-3/16 | UC211-35 | 3.18 |
| UCFT212 | 60 | 235 |
202 | 34 | 21 |
53 | 18 | 138 |
73.7 | 65.1 | 25.4 |
M16 | UC212 | FT212 |
4.00 |
| 212-36 | 2-1/4 | 9-1/4 | 7-61/64 |
1-9/64 | 53/64 | 2-3/32 | 23/32 |
5-7/16 | 2-29/32 | 2.5630 |
1.000 | 5/8 | UC212-36 | 4.13 |
| 212-37 | 2-5/16 | UC212-37 | 4.05 |
| 212-38 | 2-3/8 | UC212-38 | 3.98 |
| 212-39 | 2-7/16 | UC212-39 | 3.91 |
| UCFT213 | 65 | 248 |
210 | 38 | 22 |
56 | 20.5 | 152 |
77.7 | 65.1 | 25.4 |
M18 | UC213 | FT213 |
4.72 |
| 213-40 | 2-1/2 | 9-49/64 | 8-17/64 |
1-1/2 | 55/64 | 2-13/64 | 13/16 |
5-63/64 | 3-1/16 | 2.5630 |
1.000 | 23/32 | UC213-40 | 4.81 |
| 213-41 | 2-9/16 | UC213-41 | 4.72 |
| UCFT214 | 70 | 257 |
216 | 38 | 23 |
58 | 23 | 157 |
82.4 | 74.6 | 30.2 |
M20 | UC214 | FT214 |
5.27 |
| 214-42 | 2-5/8 | 10-7/16 | 8-1/2 |
1-1/2 | 29/32 | 2-9/32 | 29/32 |
6-3/16 | 3-1/4 | 2.9370 | 1.189 |
3/4 | UC214-42 | 5.48 |
| 214-43 | 2-11/16 | UC214-43 | 5.38 |
| 214-44 | 2-3/4 | UC214-44 | 5.28 |
