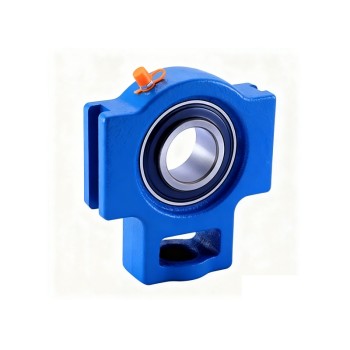

UKT200 Take-up Bearing Units

group name: Take-up Bearing Units

Min Order: 1 piece

brand name: CTS-ChinaTransmissionS

model: UKT 200

Nearest port for product export: Shanghai, Ningbo, Tianjing, Guangzhou

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash

update time: Sat, 06 Dec 2025 10:36:01 GMT

contact supplier

Paramtents

Bearing Insert UK2 Series
Housing Type Take-up housing T200
Material Cast Iron

Packging & Delivery

Min Order1 piece

Briefing

UKT200 Take-up Units provide adjustable shaft positioning, strong load support, and reliable sealing for conveyor and tensioning applications.

Detailed

Take-Up Bearing Units are adjustable bearing assemblies designed to maintain shaft or belt/chain tension and accommodate misalignment in conveyor systems and other material-handling equipment. The housing is typically made from high-strength cast iron or ductile iron and is engineered with a slot or guide-rail mechanism to enable smooth sliding.t dust, moisture, and contaminants—ensuring long service life and minimal maintenance.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

UKT200 Take-up Bearing Units Dimensions

Unit NO.	Dimensions(mm/in.)																Bearing No.	Housing No.	Weight (kg)
Unit NO.	d	0	g	p	q	S	b	k	e	a	W	J	I	h	t	B1	Bearing No.	Housing No.	Weight (kg)
UKT205;H2305	20	16	10	51	32	19	51	12	76	89	97	32	24	62	48	35	UK205;H2305	T205	0.86
205;HE2305	3/4	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-13/16	1-1/4	15/16	2-7/16	1-7/8	1.378	UK205;HE2305	T205	0.86
UKT206;H2306	25	16	10	56	37	22	57	12	89	102	113	37	28	70	53	38	UK206;H2306	T206	1.26
206;HS2306	7/8	5/8	25/64	2-7/32	1-29/64	55/64	2-1/4	15/32	3-1/2	4-1/64	4-29/64	1-29/64	1-3/32	2-3/4	2-3/32	1.496	UK206;HS2306
206;HE2306	1	5/8	25/64	2-7/32	1-29/64	55/64	2-1/4	15/32	3-1/2	4-1/64	4-29/64	1-29/64	1-3/32	2-3/4	2-3/32	1.496	UK206;HE2306
UKT207:H2307	30	16	13	64	37	22	64	12	89	102	129	37	30	78	59.5	43	UK207;H2307	T207	2.5
207;HS2307	1-1/8	5/8	33/64	2-33/64	1-29/64	55/64	2-33/64	15/32	3-1/2	4-1/64	5-5/64	1-29/64	1-3/16	3-5/64	2-11/32	1.693	UK207;HS2307	T207	2.5
UKT208:H2308	35	19	16	83	49	29	83	16	102	114	144	49	33	89	69	46	UK208;H2308	T208	2.5
208;HE2308	1-1/4	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-31/64	5-43/64	1-15/16	1-5/16	3-1/2	2-23/32	1.811	UK208;HE2308
208;HS2308	1-3/8	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-31/64	5-43/64	1-15/16	1-5/16	3-1/2	2-23/32	1.811	UK208;HS2308
UKT209:H2309	40	19	16	83	49	29	83	16	102	117	144	49	35	87	69	50	UK209;H2309	T209	2.51
209;HA2309	1-7/16	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-43/64	1-15/16	1-3/8	3-27/64	2-23/32	1.969	UK209;HA2309
209;HE2309	1-1/2																UK209;HE2309
209;HS2309	1-5/8																UK209;HS2309
UKT210:H2310	45	19	16	83	49	29	86	16	102	117	149	49	37	90	74.5	55	UK210;H2310	T210	2.6
210;HS2310	1-5/8	3/4	5/8	3-17/64	1-15/16	1-9/64	3-25/64	5/8	4-1/64	4-39/64	5-55/64	1-15/16	1-15/32	3-35/64	2-15/16	2.165	UK210;HS2310
210;HA2310	1-11/16																UK210;HA2310
210;HE2310	1-3/4																UK210;HE2310
UKT211:H2311	50	25	19	102	64	35	95	22	130	146	171	64	38	106	76	59	UK211;H2311	T211	4.26
211;HS2311	1-7/8	63/64	3/4	4-1/64	2-1/32	1-3/8	3-3/4	55/64	5-1/8	5-3/4	6-47/64	2-33/64	1-1/2	4-11/64	3	2.323	UK211;HS2311
211;HA2311	1-15/16																UK211;HA2311
211;HE2311	2																UK211;HE2311
UKT212;H2312	55	32	19	102	64	35	102	22	130	146	194	64	42	119	89	62	UK212;H2312	T212	5.02
212;HS2312	2-1/8	1-17/64	3/4	4-1/64	2-1/32	1-3/8	4-1/64	55/64	5-1/8	5-3/4	7-41/64	2-33/64	1-21/32	4-11/16	3-1/2	2.441	UK212;HS2312	T212	5.02
UKT213:H2313	60	32	21	111	70	41	121	26	151	167	224	70	44	137	89	65	UK213;H2313	T213	6.56
213;HA2313	2-3/16	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	8-13/16	2-3/4	1-23/32	5-25/64	3-1/2	2.559	UK213;HA2313
213;HE2313	2-1/4																UK213;HE2313
213;HS2313	2-3/8																UK213;HS2313
UKT215:H2315	65	32	21	111	70	41	121	26	151	167	232	70	48	140	99	73	UK215;H2315	T215	7.52
215;HA2315	2-7/16	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	9-9/64	2-3/4	1-57/64	5-33/64	3-57/64	2.874	UK215;HA2315
215;HE2315	2-1/2	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	9-9/64	2-3/4	1-57/64	5-33/64	3-57/64	2.874	UK215;HE2315
UKT216;H2316	70	32	21	111	70	41	121	26	165	184	235	70	51	140	109	78	UK216;H2316	T216	8.56
216;HA2316	2-11/16	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	6-1/2	7-1/4	9-1/4	2-3/4	2	5-33/64	4-19/64	3.071	UK216;HA2316
216;HE2316	2-3/4	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	6-1/2	7-1/4	9-1/4	2-3/4	2	5-33/64	4-19/64	3.071	UK216;HE2316
UKT217:H2317	75	38	29	124	73	48	157	30	173	198	260	73	54	162	113.2	82	UK217;H2317	T217	11.38
217;HA2317	2-15/16	1-1/2	1-9/64	4-7/8	2-7/8	1-57/64	6-3/16	1-3/16	6-13/16	7-51/64	10-15/64	2-7/8	2-1/8	6-3/8	4-29/64	3.288	UK217;HA2317
217;HE2317	3	1-1/2	1-9/64	4-7/8	2-7/8	1-57/64	6-3/16	1-3/16	6-13/16	7-51/64	10-15/64	2-7/8	2-1/8	6-3/8	4-29/64	3.288	UK217;HE2317
