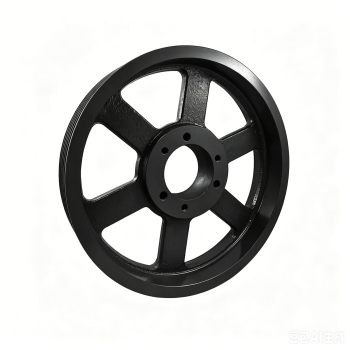

5 Grooves 8V QD Sheave

group name: 8V V-Belt Sheave

Min Order: 1 piece

brand name: CTS-ChinaTransmissionS

model: 5-8V QD Sheave

Nearest port for product export: Shanghai, Ningbo, Tianjing, Guangzhou

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash

update time: Sat, 27 Jun 2026 23:02:27 GMT

contact supplier

Paramtents

Material Cast Iron
Belt Type 8V Narrow V-belt
Groove Quantity 5 Grooves
Pilot Bore/ QD Bushed Black Phosphate/ Anti-Rust Coating
Bore Type Pilot Bore/ QD Bushed/ Finished Bore
Balance Dynamically Balanced

Packging & Delivery

Min Order1 piece

Briefing

High-strength cast iron 5 grooves 8V sheave for compact, high-speed industrial power transmission.

Detailed

About 5 Grooves 8V Sheave

An 8V QD Sheave is a heavy-duty narrow V-belt sheave designed for use with 8V section belts commonly used in high-horsepower industrial transmission systems. Compared with smaller narrow belt profiles such as 3V and 5V, 8V sheaves are designed for significantly higher load capacity and demanding operating conditions.

The QD bushing system provides secure shaft mounting and easier installation compared with traditional fixed-bore pulleys. Due to their reliable performance and maintenance advantages, 8V QD sheaves are widely used in mining, aggregate, cement, steel, and heavy industrial machinery.

For more information or to request a quote on our 5 Grooves 8V QD Sheave, please don't hesitate to contact us.

5-8V QD Sheave Dimension

CTS can supply a complete range of 5-groove 8V QD sheave sizes for different transmission requirements.

5 Grooves 8V QD Sheave Size Chart
F = 6
Part Number	OD	PD	Type	Bush	Bush Max Bore	E★	K	L Length Thru Bore	M★	Wt. Less Bush
Part Number	OD	8V Belt	Type	Bush	Bush Max Bore	E★	K	L Length Thru Bore	M★	Wt. Less Bush
5 8V 1250 F	12.5	12.5	A-1	F	3.9375	1.3125	2.3125	3.625	1.0625	68.0
5 8V 1320 F	13.2	13.2	A-2	F	3.9375	1.3125	2.3125	3.625	1.0625	75.0
5 8V 1400 F	14	14	A-2	F	3.9375	1.3125	2.3125	3.625	1.0625	78.0
5 8V 1500 F	15	15	A-2	F	3.9375	1.3125	2.3125	3.625	1.0625	94.0
5 8V 1600 F	16	16	A-2	F	3.9375	1.3125	2.3125	3.625	1.0625	101.0
5 8V 1700 J	17	17	A-3	J	4.5	0.8125	2	4.5	0.6875	111.0
5 8V 1800 J	18	18	A-3	J	4.5	0.8125	2	4.5	0.6875	130.0
5 8V 1900 J	19	19	A-3	J	4.5	0.8125	2	4.5	0.6875	135.0
5 8V 2000 J	20	20	A-3	J	4.5	0.8125	2	4.5	0.6875	152.0
5 8V 2120 J	21.2	21.2	A-3	J	4.5	0.8125	2	4.5	0.6875	153.0
5 8V 2240 M	22.4	22.4	B-3	M	5.5	0.5	1.9375	6.75	1.25	223.0
5 8V 2480 M	24.8	24.8	B-3	M	5.5	0.5	1.9375	6.75	1.25	234.0
5 8V 3000 M	30	30	B-3	M	5.5	0.5	1.9375	6.75	1.25	294.0
5 8V 3550 M	35.5	35.5	B-3	M	5.5	0.5	1.9375	6.75	1.25	325.0
5 8V 4000 M	40	40	B-3	M	5.5	0.5	1.9375	6.75	1.25	430.0
5 8V 4450 N	44.5	44.5	C-3	N	6	0.8125	0.9375	8.125	1.3125	485.0
5 8V 5300 N	53	53	C-3	N	6	0.8125	0.9375	8.125	1.3125	672.0

Additional sizes and customized dimensions are available according to customer requirements.

Compatible QD Bushings

CTS also supplies compatible QD bushings designed for use with our QD sheaves and other standard industrial belt pulley systems. Our QD bushings can directly replace many popular brands such as Martin, Browning, TB Woods, and other standard QD bushing systems commonly used in North American industrial applications.

QD Bushing Type
JA Bushing	SH Bushing	SDS Bushing	SD Bushing
SK Bushing	SF Bushing	E Bushing	F Bushing
J Bushing	M Bushing	N Bushing	P Bushing
W Bushing	S Bushing

Applications of 8V QD Sheaves

Mining & Aggregate Equipment

Widely used in crushers, screening systems, and heavy-duty conveyor applications.

Cement & Steel Industry

Suitable for continuous heavy-load industrial transmission systems.

Heavy Conveyor Systems

Provides stable power transmission for bulk material handling equipment.

Compressors & Industrial Pumps

Used in high-horsepower industrial compressor and pump drive systems.

Industrial Processing Equipment

Applied in demanding industrial machinery requiring stable and reliable transmission performance.
