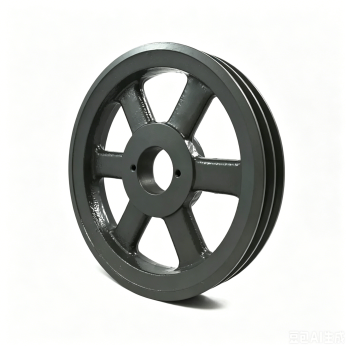

2 Grooves AK Sheave

group name: AK series V-Belt Sheave

Min Order: 1 piece

brand name: CTS-ChinaTransmissionS

model: AK-2 Sheave

Nearest port for product export: Shanghai, Ningbo, Tianjing, Guangzhou

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash

update time: Sat, 27 Jun 2026 22:59:06 GMT

contact supplier

Paramtents

Material Cast Iron
Belt Type A Section / 4L V-belts
Groove Quantity Single Groove
Pilot Bore/ QD Bushed Black Phosphate/ Rust Protection
Bore Type Pilot Bore/ Finished Bore
Balance Dynamically Balanced

Packging & Delivery

Min Order1 piece

Briefing

High-strength cast iron AK-2 sheave for compact, high-speed industrial power transmission.

Detailed

About 2 Grooves AK Sheave

An AK Sheave is a classical V-belt pulley designed for use with A-section V-belts. In North American industrial markets, “AK” typically refers to a single groove A belt sheave with a finished or pilot bore structure commonly used in light-duty industrial transmission systems.

Compared with narrow V-belt sheaves such as 3V, 5V, and 8V, AK sheaves are more economical and widely used in standard industrial machinery requiring moderate horsepower transmission.

Due to their simple structure, stable performance, and broad compatibility, AK sheaves are commonly used in agricultural equipment, HVAC systems, pumps, fans, and general machinery.

For more information or to request a quote on our AK-2 Sheave, please don't hesitate to contact us.

AK-2 Sheave Dimension

CTS can supply a complete range of AK-2 sheave sizes for different transmission requirements.

AK-2 Series Sheave Solid Web and Arm/Spoke Type

Part Number	Diameter			Type	Stock Finished Bores Includes Keyway and Setscrew										F	E	L Thru Bore	Weight Ib (Approx.)
Part Number	OD	Datum A(4L)Belts	Pitch 3L Belts	Type	Stock Finished Bores Includes Keyway and Setscrew										F	E	L Thru Bore	Weight Ib (Approx.)
2AK20	2	1.8	1.46	A	0.5	0.625	0.75								1.375	0.4688	1.6563	0.8
2AK21	2.15	1.9	1.56	A	0.5	0.625	0.75								1.375	0.4688	1.6563	0.9
2AK22	2.25	2	1.66	A	0.5	0.625	0.75	0.875		1					1.375	0.4688	1.6563	1.1
2AK23	2.35	2.1	1.76	A		0.625	0.75	0.875		1					1.375	0.4688	1.6563	1.2
2AK25	2.55	2.3	1.96	A		0.625	0.75	0.875		1					1.375	0.4688	1.6563	1.4
2AK26	2.65	2.4	2.06	A		0.625	0.75	0.875							1.375	0.4688	1.6563	1.5
2AK27	2.75	2.5	2.16	A		0.625	0.75	0.875		1					1.375	0.4688	1.6563	1.6
2AK28	2.85	2.6	2.26	A		0.625	0.75	0.875		1					1.375	0.4688	1.6563	1.7
2AK30	3.05	2.8	2.46	A	0.5	0.625	0.75	0.875		1	1.125				1.375	0.4688	1.6563	2.0
2AK32	3.25	3	2.66	A		0.625	0.75	0.875		1	1.125				1.375	0.4688	1.6563	2.2
2AK34	3.45	3.2	2.86	A		0.625	0.75	0.875		1	1.125				1.375	0.4688	1.6563	2.5
2AK39	3.75	3.5	3.16	B		0.625	0.75	0.875		1	1.125				1.375	0.4688	1.3438	2.6
2AK41	3.95	3.7	3.36	B		0.625	0.75	0.875		1	1.125				1.375	0.4688	1.3438	2.9
2AK44	4.25	4	3.66	B		0.625	0.75	0.875		1	1.125				1.375	0.4688	1.3438	3.3
2AK46	4.45	4.2	3.86	B		0.625		0.875		1	1.125				1.375	0.4688	1.3438	3.6
2AK49	4.75	4.5	4.16	B			0.75	0.875		1	1.125		1.375		1.375	0.4688	1.3438	3.8
2AK51	4.95	4.7	4.36	B			0.75	0.875		1	1.125		1.375		1.375	0.4688	1.3438	4.1
2AK54	5.25	5	4.66	B		0.625	0.75	0.875		1	1.125		1.375		1.375	0.4688	1.3438	4.3
2AK56	5.45	5.2	4.86	B		0.625	0.75			1	1.125		1.375		1.375	0.4688	1.3438	4.5
2AK59	5.75	5.5	5.16	B						1	1.125		1.375		1.375	0.4688	1.3438	4.9
2AK61	5.95	5.7	5.36	B			0.75	0.875		1	1.125		1.375		1.375	0.4688	1.3438	5.2
2AK64	6.25	6	5.66	C			0.75			1	1.125	1.1875	1.375	1.4375	1.375	0.3438	1.5938	5.6
2AK74	7.25	7	6.66	C			0.75			1	1.125	1.1875	1.375	1.4375	1.375	0.3438	1.5938	6.5
2AK84	8.25	8	7.66	C			0.75		0.9375	1	1.125		1.375	1.4375	1.375	0.3438	1.5938	7.2
2AK94	9.25	9	8.66	C			0.75	0.875		1	1.125	1.1875	1.375	1.4375	1.375	0.3438	1.5938	8.0
2AK104	10.25	10	9.66	C			0.75		0.9375	1		1.1875		1.4375	1.375	0.3438	1.5938	9.0
2AK114	11.25	11	10.66	C						1		1.1875	1.375	1.4375	1.375	0.3438	1.5938	9.7
2AK124	12.25	12	11.66	C						1		1.1875		1.4375	1.375	0.3438	1.5938	10.5
2AK134	13.25	13	12.66	C								1.1875		1.4375	1.375	0.3438	1.5938	12.7
2AK144	14.25	14	13.66	C						1				1.4375	1.375	0.3438	1.5938	13.1
2AK154	15.25	15	14.66	C								1.1875		1.4375	1.375	0.3438	1.5938	14.3
2AK184	18.25	18	17.66	C								1.1875		1.4375	1.375	0.3438	1.5938	17.1

Additional sizes and customized dimensions are available according to customer requirements.

Bore & Mounting Options

CTS offers different bore configurations for various shaft installation systems.

Pilot Bore AK-2 Sheave

Suitable for customers requiring custom bore machining and keyway processing.

Finished Bore AK-2 Sheave

Supplied with finished bore and keyway for direct installation.
